Chain Pulley Blocks: Specifications, Uses, and Selection Guide

Efficient lifting and material handling solutions are essential across industries. Chain pulley blocks have emerged as one of the most versatile and cost-effective tools for such tasks. These devices, often referred to as chain blocks or hand chain hoists, are used worldwide for their reliability, durability, and simplicity in design.

This guide explores everything you need to know about chain pulley blocks, including their specifications, working principles, types, advantages, and tips for choosing the right one. We’ll also highlight why LOADMATE, India’s leading manufacturer of material handling equipment, is the best choice for your lifting needs.

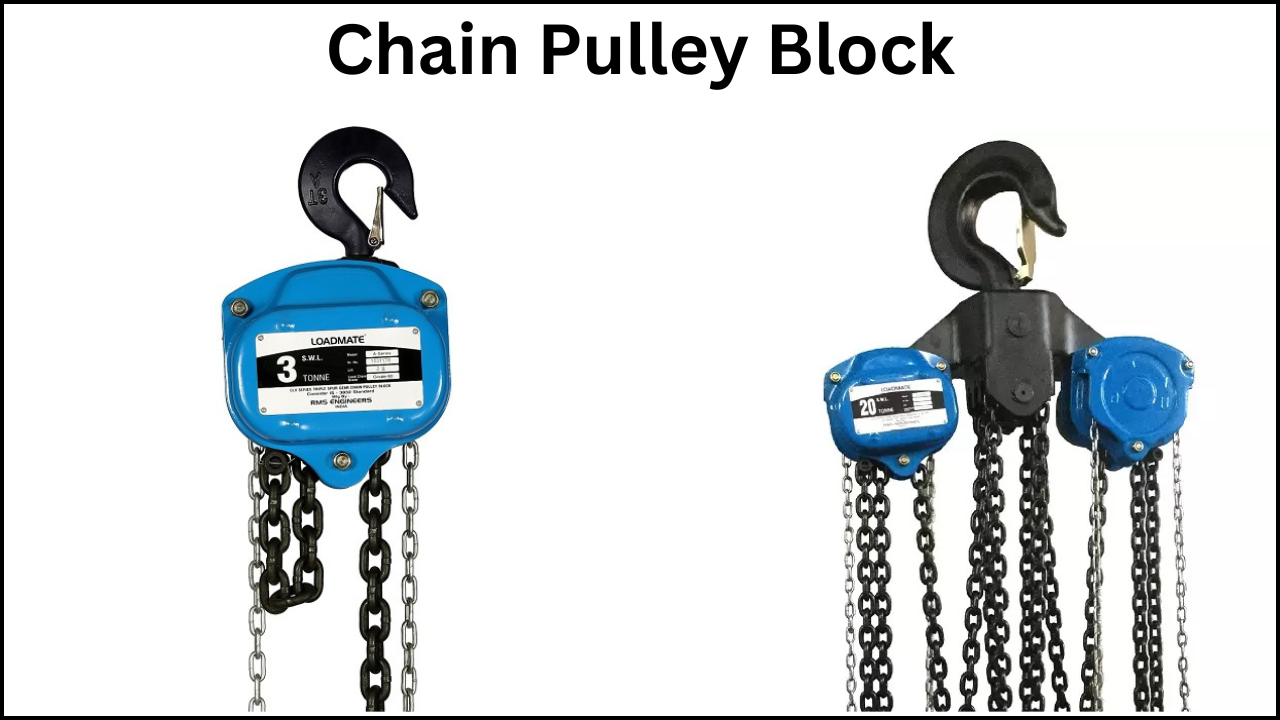

1.What is a Chain Pulley Block?



A Chain Pulley Block is a manual lifting device that uses a system of gears, chains, and hooks to lift and lower heavy objects. The block operates on a simple principle: applying force to the hand chain rotates internal gears, which amplify the force and move the load chain to lift the attached weight.

Main Components:

• Hand Chain: Pulled by the operator to activate the lifting mechanism.
• Load Chain: Attaches to the load and moves up or down during operation.
• Gears: Enhance mechanical efficiency by amplifying the applied force.
• Hooks: Used to secure the load and the device to an anchor point.
• Brake System: Ensures safety by preventing load slippage.

2.Why Are Chain Pulley Blocks Essential?

The primary role of a chain pulley block is to provide an efficient, safe, and cost-effective solution for lifting heavy loads. Whether you’re operating in a warehouse, factory, or construction site, these devices are indispensable for material handling.

Industries That Use Chain Pulley Blocks:

• Construction: Lifting beams, concrete blocks, and machinery.
• Manufacturing: Transporting raw materials and finished goods.
• Automotive: Lifting vehicle engines and heavy parts.
• Shipping: Loading and unloading cargo.
• Mining: Handling equipment and ore.

3.How Does a Chain Pulley Block Work?

The working principle of a chain pulley block lies in its mechanical advantage. Here’s a step-by-step breakdown:

1. Pull the Hand Chain: The operator pulls the hand chain in a loop, which activates the internal gears.
2. Gear Rotation: The gears multiply the input force, allowing heavy loads to be lifted with minimal effort.
3. Load Movement: The load chain moves up or down, depending on the direction of the hand chain's pull.
4. Load Braking: A built-in braking system holds the load securely in place once the lifting stops.

This simple yet effective mechanism makes chain pulley blocks a reliable tool for manual lifting.

4.Specifications of Chain Pulley Blocks

When selecting a chain pulley block, it’s important to understand its specifications to ensure compatibility with your operations.

Key Specifications to Consider:

 1. Load Capacity

1. Chain pulley blocks are designed to lift weights ranging from 0.5 tons to over 50 tons.
2. Always choose a block with a capacity slightly higher than your maximum load to ensure safety.

2. Lift Height

1. The lift height refers to how high the load chain can raise the object.
2. Standard models offer heights of 3 to 60 meters, with customization available for specific needs.

3. Material Quality

• Chains are usually crafted from alloy steel to ensure strength and resistance to wear.
• Hooks are forged steel, designed to prevent deformation under heavy loads.

4. Safety Features

• LOADMATE Offers a special feature in chain pulley blocks of Overload Protection, ensuring safe operation even under heavy stress.
• Anti-drop and slip-resistant mechanisms add an extra layer of safety.

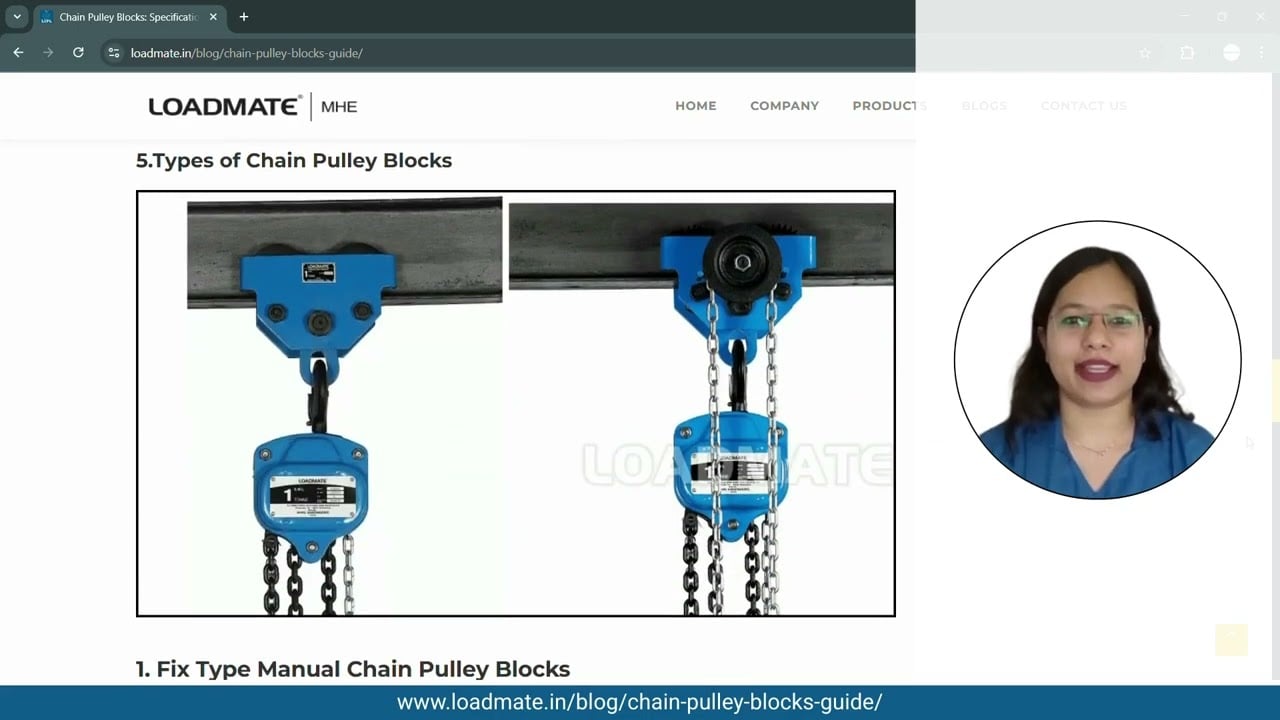

5.Types of Chain Pulley Blocks

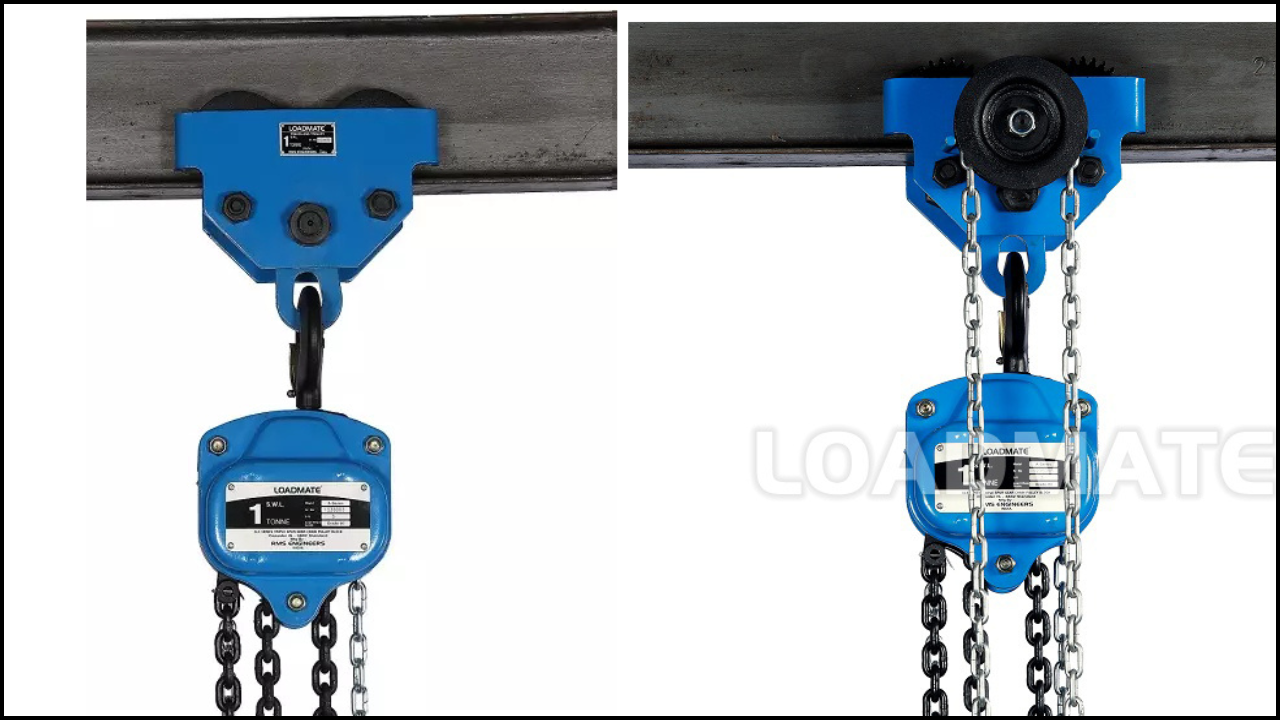

1. Fix Type Manual Chain Pulley Blocks

• Operated entirely by hand using a manual chain mechanism.
• Fixed in one position for vertical lifting only.
• Best suited for stationary lifting tasks.
• Compact, durable, and easy to use in various industrial settings.
• Ideal for workshops, warehouses, and light-to-medium-duty applications.

2. Manual Chain Pulley Block with Push Pull Trolley

• Combines a manual chain pulley block with a push-pull trolley.
• Trolley moves horizontally along the beam when pushed or pulled manually.
• Allows for lifting and horizontal movement of loads simultaneously.
• Adjustable to fit different beam widths.
• Suitable for workshops, assembly lines, and general-purpose material handling.

3. Manual Chain Pulley Block with Geared Trolley

• Features a manual chain pulley block integrated with a geared trolley.
• Operated using a hand chain to move the trolley along the beam with precision.
• Provides smooth and controlled horizontal movement of loads.
• Ideal for applications requiring accurate load placement.
• Commonly used in manufacturing, construction, and industrial setups for heavy-duty tasks.

6.Advantages of Chain Pulley Blocks

• Affordability: Manual models are a cost-effective alternative to electric or hydraulic hoists.
• Portability: Lightweight and compact design simplifies transportation.
• Versatility: Applicable across a broad spectrum of industries and tasks.
• Durability: Manufactured using top-grade materials for prolonged usage.
• Ease of Use: Requires little training and offers straightforward operation.
• Safety: Advanced mechanisms safeguard the operator and load.

7.Applications of Chain Pulley Blocks

The adaptability of chain pulley blocks makes them effective in numerous industries:

• Warehouses: Lifting heavy crates and equipment.
• Construction Sites: Hoisting steel beams and construction materials.
• Garages: Lifting engines and vehicle parts.
• Shipping Docks: Loading and unloading cargo containers.

8.How to Select the Best Chain Pulley Block

Choosing the appropriate chain pulley block is based on your unique requirements. Take these factors into account:

1. Load Capacity: Choose a device that exceeds your maximum lifting requirement.
2. Frequency of Use: Opt for electric models if you need frequent and fast lifting.
3. Environment: For corrosive or outdoor environments, choose corrosion-resistant materials.
4. Reputable Brand: Trust manufacturers like LOADMATE for high-quality and reliable equipment.

9.Mechanical Advantage of Chain Pulley Blocks

The mechanical advantage provided by chain pulley blocks is what makes them so effective. For example:

• A chain block with a 100:1 gear ratio means you only need to exert 1 kg of force to lift a 100 kg load.

This efficiency allows operators to lift heavy objects with minimal physical effort.

10.FAQs About Chain Pulley Blocks

1. How much weight can a chain pulley block lift?
   Chain pulley blocks can lift weights ranging from 500 kg to 50 tons, depending on the model.

• What is the difference between a manual hoist and a chain pulley block?
  A manual hoist is a set of Chain Pulley Blocks with cross travelling trolley for vertical and horizontal movement, while a chain pulley block is useful only for vertical movement.

• What is the safety factor of a chain pulley block?
  Most chain pulley blocks have a safety factor of 4:1, meaning they can handle loads four times their rated capacity in controlled conditions.

• How fast can a chain block lift?
  Manual chain blocks depend on the operator’s speed. ideal manual seed of pulling manual hand chain is 300 mm per second. The lifting speed of load hook will depend on the gear ration and chain falls.



11.Why LOADMATE is the Best Choice for Chain Pulley Blocks

As India’s leading manufacturer of material handling equipment, LOADMATE offers unparalleled quality and reliability.

Why Choose a LOADMATE?

1. Wide Range: From manual to electric chain pulley blocks, we have it all.
2. Customization: Tailored solutions to meet your specific lifting needs.
3. Durable Products: Built with the finest materials to ensure long-lasting performance.
4. Expert Support: Our team provides installation, maintenance, and operational guidance.

12.Conclusion

Chain pulley blocks are indispensable tools for lifting heavy loads across various industries. Their compact design, affordability, and versatility make them a popular choice. Whether you need a manual model for occasional use or an electric one for frequent operations, understanding the specifications and applications will help you make an informed decision.

For the most reliable chain pulley blocks in India, trust LOADMATE. With a strong reputation for quality and innovation, LOADMATE ensures your lifting operations are safe, efficient, and hassle-free.
