Electric Winch
A wire rope winch for lifting, pulling and positioning heavy loads — capacities to 250 tonnes and rope lengths to 2000 metres, built for continuous industrial and marine duty.
Electric Winch.

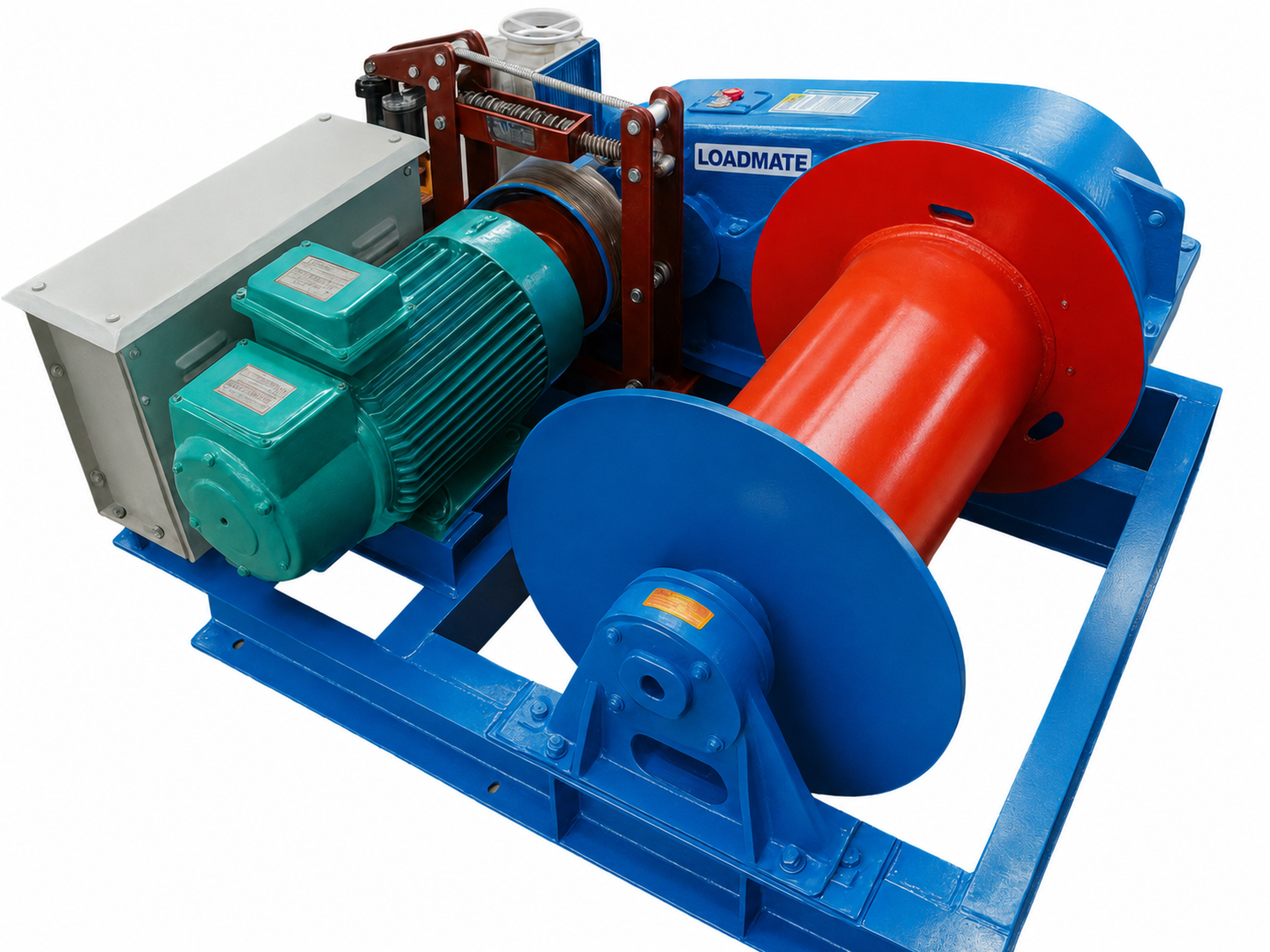

A winch does what a hoist cannot: long-distance pulls, controlled positioning, and load handling where the rope runs hundreds of metres rather than tens. The LOADMATE Electric Wire Rope Winch is built for exactly that duty — heavy, continuous, and often outdoors.
Capacities reach 250 tonnes with rope lengths to 2000 metres. Grooved drums give smooth single-layer winding and extended rope life; double-brake arrangements add a second layer of safety on critical lifts. Drum size, rope specification, speed, braking and control philosophy are all engineered to the application.
Capacity & specification chart.
Indicative ranges across the winch series. Drum, rope and gearbox are sized together — final build confirmed on the project datasheet.
| Capacity (S.W.L) | MT | 5 | 10 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rope Length (max) | Mtr | 2000 | 2000 | 1500 | 1500 | 1200 | 1200 | 1000 | 800 | 800 | 600 | 500 | 500 |
| Rope Dia (typical) | mm | 12 | 16 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 42 | 48 | 52 |
| Line Pull (1st layer) | kN | 49 | 98 | 147 | 196 | 245 | 294 | 490 | 736 | 981 | 1471 | 1962 | 2452 |
| Rope Speed (typical) | m/min | 12 | 12 | 10 | 10 | 10 | 8 | 8 | 6 | 6 | 5 | 4 | 4 |
| Motor Rating (approx) | kW | 7.5 | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 160 | 200 | 250 |
| Drum Type | – | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved |
| Brake | – | Single | Single | Single | Double | Double | Double | Double | Double | Double | Double | Double | Double |
Figures are engineering-typical and vary with rope construction, reeving and layer count. Every winch is load-tested at 125% of rated capacity before dispatch, with a test certificate issued.
Specification sheet.
Standard ranges — send your requirement and we’ll configure to match.
Mechanical & electrical
What comes built in as standard.
Optional upgrades & add-ons.
Why a LOADMATE winch.
Long-distance pulls
Rope lengths to 2000 m — where a hoist simply cannot reach.
Grooved drum as standard
Rope seats in its own groove, so it never crushes itself. Longest rope life in the class.
Built for continuous duty
Rugged designs proven in construction, shipyards, mines and oil & gas.
Double-brake safety
A second independent brake for critical and man-riding-adjacent duty.
Engineered per pull
Drum, rope, gearbox and speed sized to your load and distance, not a catalogue.
Manufactured in-house
Designed, fabricated and load-tested at our Surat facility.
Three ways to specify it.
Lifting winch
Vertical lifting duty with fail-safe braking and limit switches.
Best for: Hoisting where a fixed hoist cannot be mounted.
Pulling winch
Horizontal haulage over long distances at high line pull.
Best for: Site rigging, haulage and equipment positioning.
Take-up winch
Maintains constant tension in a conveyor belt arrangement.
Best for: Conveyor take-up in plants and mines.
Industries we serve.
Tap any industry for application detail.
Designed and certified to published standards.
IS 2266
Steel wire ropes
Indian Standard for steel wire ropes used in hoisting and haulage.
IS 807
Design of cranes & structures
Structural design, manufacture and testing of lifting structures.
125% test
Proof load
Every winch load-tested at 125% of rated capacity before dispatch.
ISO 9001 + ZED
Quality & manufacturing
ISO 9001:2015 certified plus ZED Gold tier.
Electric Winch — technical questions.
What is the difference between an electric winch and an electric hoist?
A hoist lifts vertically on a fixed reeving with a limited height of lift. A winch is built around a rope drum for long pulls — it can lift, pull horizontally or position, with rope lengths to 2000 metres. Where the rope runs hundreds of metres, or the pull is not straight down, the winch is the correct machine.
What capacity can a LOADMATE winch reach?
Up to 250 tonnes. Capacity, rope length, drum size and speed are engineered together, so send us the pull and the distance in the same enquiry.
What is a grooved drum and why does it matter?
A grooved drum has machined helical grooves that seat each rope wrap in its own channel. The rope winds in a single even layer without crossing over itself, which prevents the crushing and abrasion that shorten wire rope life fastest. On long rope lengths it is strongly recommended.
What is a take-up winch used for?
Maintaining tension in a conveyor belt arrangement. As the belt stretches in service the take-up winch pays out or hauls in to hold correct tension, keeping tracking and drive traction stable.
Can you supply a flameproof winch?
Yes — flameproof and explosion-proof executions are available for hazardous zones. Tell us the zone and gas group and we will specify the certified motor, brake and panel.
What is the typical lead time?
Standard configurations typically ship in 8 to 14 weeks from order confirmation. Engineered and special-purpose builds take longer, and we confirm a delivery date in writing at the time of order.
